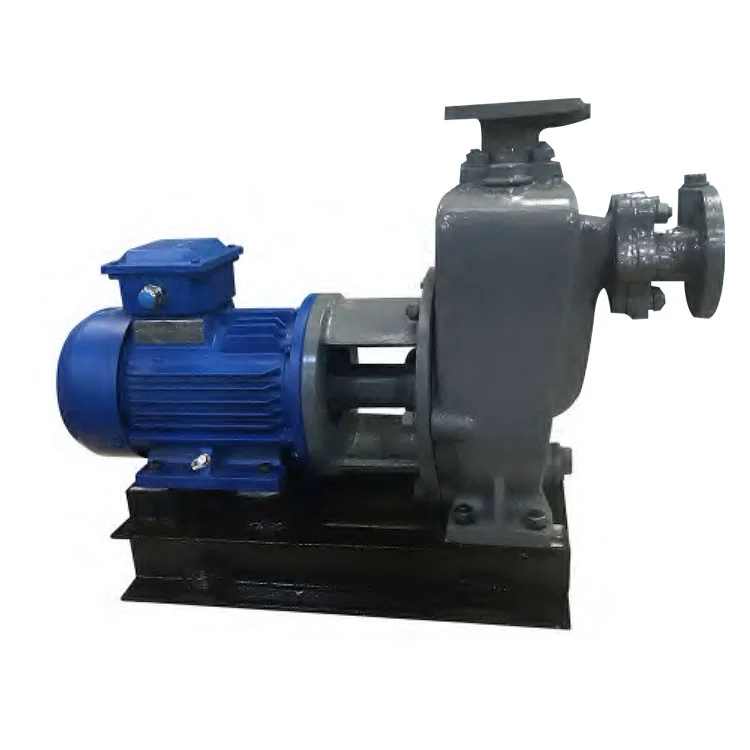

In der Lichtindustrie, Papier - Making, Textil, Lebensmittel, Chemikalien, Stromindustrie, Bergbau, Boote, Abwasserabwässerung und Wasserkultur, ist die horizontale Quetschpumpe vom Typ CWFZ in China derzeit die idealste Pumpe in China.
Leistung und Parametertabelle für die Netzteilfrequenz von 50 Hz 3 φ 380 V:

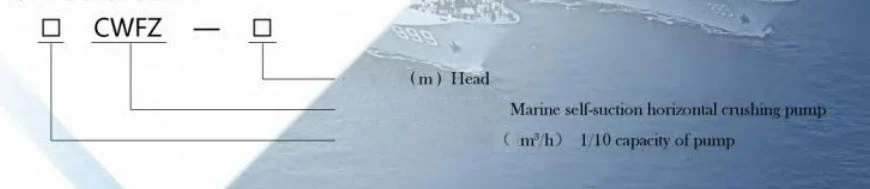

| Typ | (50 Hz 3 φ 380 V) Haupttechnischer Hauptparameter | Motor Typ Power KW | Gewicht Kg |
|||||
| Kapazität M3/h |
Kopf m |
Geschwindigkeit R/min | NPSHR m |
Wellenleistung KW |
||||
| 0,5CWFZ-20 | 5 | 20 | 2900 | 4 | Y90L-2H | 2.2 | ||
| 0,5CWFZ-25 | 5 | 25 | 2900 | 4 | Y90L-2H | 2.2 | ||
| 0,5CWFZ-30 | 5 | 30 | 2900 | 4 | Y112m-2h | 4 | ||
| 1CWFZ-20 | 10 | 20 | 2900 | 4.5 | Y90L-2H | 2.2 | ||
| 1CWFZ-25 | 10 | 25 | 2900 | 4.5 | Y112m-2h | 4 | ||
| 1CWFZ-30 | 10 | 30 | 2900 | 4.5 | Y112m-2h | 4 | ||
| 1CWFZ-35 | 10 | 35 | 2900 | 4.5 | Y132S1-2H | 5.5 | ||
| 1CWFZ-40 | 10 | 40 | 2900 | 4.5 | Y132S1-2H | 5.5 | ||
| 1CWFZ-50 | 10 | 50 | 2900 | 4.5 | Y132S2-2H | 7.5 | ||
| 1,5CWFZ-30 | 15 | 30 | 2900 | 5 | Y132S1-2H | 5.5 | ||
| 1,5CWFZ-35 | 15 | 35 | 2900 | 5 | Y132S1-2H | 5.5 | ||
| 2CWFZ-35 | 20 | 35 | 2900 | 5 | Y132S2-2H | 7.5 | ||
| 2CWFZ-40 | 20 | 40 | 2900 | 5 | Y132S2-2H | 7.5 | ||
| 5cwfz-30 | 50 | 30 | 2950 | 4.5 | Y160M1-2H | 11 | ||
| 5CWFZ-40 | 50 | 40 | 2950 | 4.5 | Y180m-2h | 22 | ||
Leistung und Parametertabelle für die Stromversorgungsfrequenz von 60 Hz 3 φ 440 V:
| Typ | (60 Hz 3 φ 440 V) | KW | Kg | |||||
| M3/h | Kopf m |
r/min | m | KW | ||||
| 0,5CWFZ1-20 | 6 | 28 | 3500 | 4.5 | Y112m-2h | 4 | ||
| 0,5CWFZ1-25 | 6 | 36 | 3500 | 4.5 | Y112m-2h | 4 | ||
| 0,5CWFZ1-30 | 6 | 43 | 3500 | 4.5 | Y112m-2h | 4 | ||
| 1CWFZ1-20 | 12 | 28.5 | 3500 | 5 | Y132S1-2H | 5.5 | ||
| 1CWFZ1-25 | 12 | 35.5 | 3500 | 5 | Y132S2-2H | 7.5 | ||
| 1CWFZ1-30 | 12 | 43 | 3500 | 5 | Y132S2-2H | 7.5 | ||
| 1CWFZ1-35 | 12 | 51 | 3550 | 5 | Y160M1-2H | 11 | ||
| 1CWFZ1-40 | 12 | 59 | 3550 | 5 | Y160M1-2H | 11 | ||
| 1CWFZ1-50 | 12 | 73 | 3550 | 5 | Y160M2-2H | 15 | ||
| 1,5CWFZ1-30 | 18 | 44 | 3550 | 5.5 | Y160M1-2H | 11 | ||
| 1,5CWFZ1-35 | 18 | 51 | 3550 | 5.5 | Y160M1-2H | 11 | ||
| 2CWFZ1-35 | 24.5 | 51 | 3550 | 5.5 | Y160M1-2H | 11 | ||
| 2CWFZ1-40 | 24.5 | 58 | 3550 | 5.5 | Y160M2-2H | 15 | ||
| 5CWFZ1-30 | 60 | 42 | 3550 | 5 | Y160L-2H | 18.5 | ||
| 5CWFZ1-40 | 60 | 57 | 3580 | 6 | Y200L2-2H | 37 | ||
